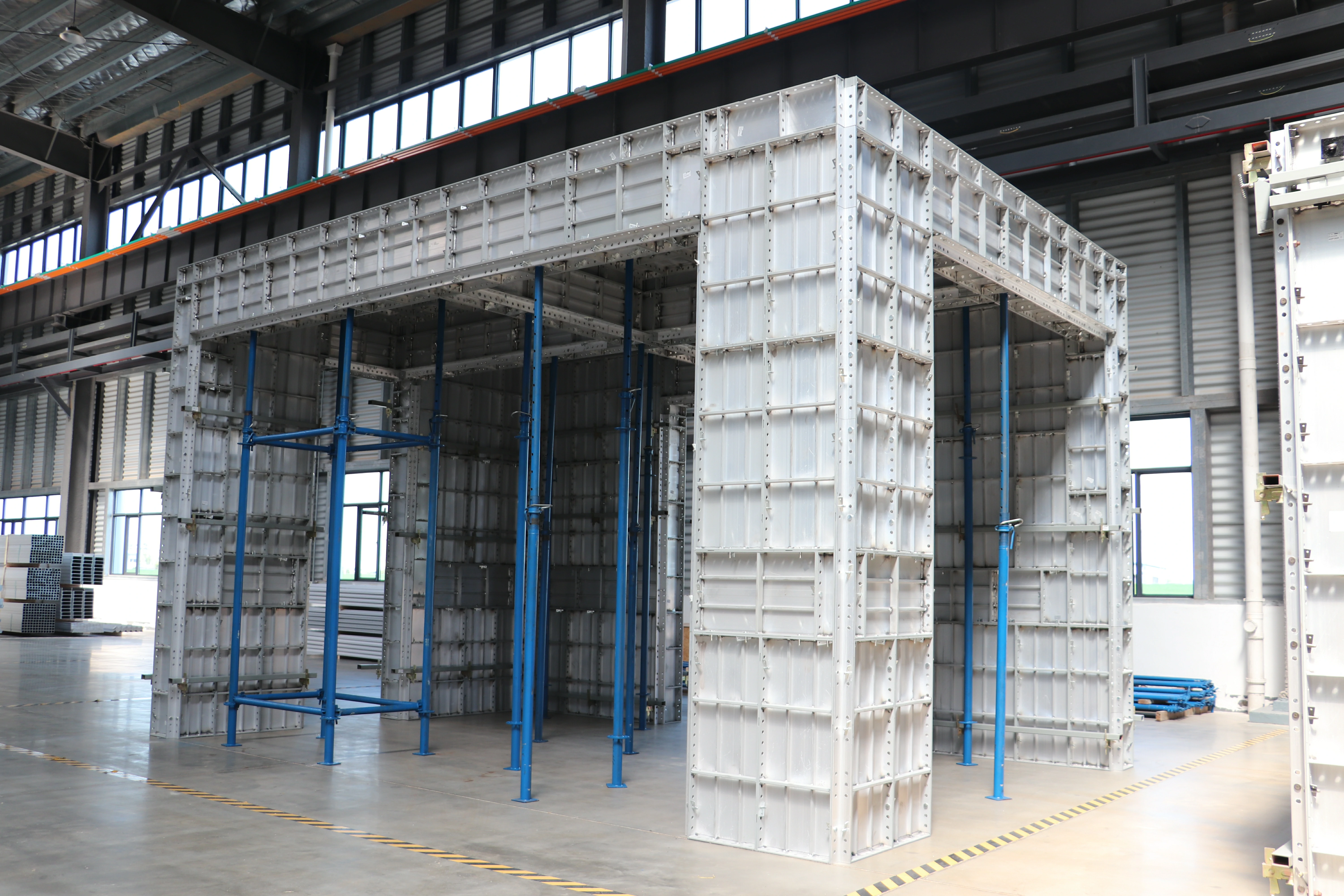

Aluminum Formwork K Panel Installation: First-Floor Positioning and Inter-Floor Joint Control

1. What Does an Aluminum Formwork K Panel Do?

On residential aluminum formwork projects, K panels are generally positioned at the wall base, starter wall or inter-floor construction joint. They provide a positioning reference for the wall panels above, control the edge line of the horizontal construction joint and help keep walls aligned from one floor to the next. The K panel therefore affects both the initial wall position and whether the next-floor formwork can close and lock correctly.

From a construction-management perspective, the K panel cannot be judged by its dimensions alone. It must get three things right: the first-floor starter-wall edge line, the position of the next-floor wall panels, and the continued integrity of its edge ribs, holes and level reference after stripping and reuse. Losing control of any one of these points usually results in a defective inter-floor joint.

• Establish the first-floor or starter-wall reference and control the initial wall edge line.
• Provide the seating and positioning reference for the wall formwork above, keeping successive floors aligned.
• Control the horizontal construction joint and reduce offsets and grout leakage between floors.
• Provide a repeatable survey point for wall verticality and accumulated inter-floor deviation.
• As a reusable component, receive focused checks for edge ribs, holes, flatness and deformation.

2. Why Is Accurate First-Floor Positioning So Important for K Panels?

If a K panel is displaced on the first floor, the result on later floors is usually not a single isolated error. The entire wall line moves because the wall formwork above is positioned from the K panel. The initial error is copied floor after floor, eventually appearing as inter-floor offsets, uneven facade lines, misaligned door and window openings, or reduced clear space in lift shafts and stairwells.

The key is therefore not simply fitting the K panel, but closing the loop between the starter wall, wall edge lines, structural grid and level datum. If the starter wall is cast first and the K panel is positioned afterward, or if the panel is fixed before the edge line is checked, later correction with push-pull props and forced wall-panel adjustment can address only local points, not the overall relationship between floors.

3. How Should K Panels Be Addressed During Detailed Design?

The K panel may be small, but it cannot be omitted from the detailing process. Wall-panel layouts, starter-wall details, inter-floor joint details and panel-numbering drawings should define its location, length, segmentation, connection holes, relationship to wall panels, and interfaces with door and window openings, corners, upstands and stairwells. Typical floors should use standardized sizes where practical, while non-typical floors require separate components.

At a K panel junction, the decisive issue is not the dimension of a single component but its coordination with the first-floor starter wall, standard and special-size wall panels, internal and external corner panels and tie system. If that relationship is not resolved in the drawings, makeshift infill and mixed installation are likely on site.

• Show K panel numbers, locations and length segments on the detailed wall-formwork drawings.
• Check K panels separately at corners, openings, short walls and shear-wall stop ends.
• Define the relationship between K panels, wall panels, corner panels, ties and walers in the junction details.
• Do not assume that K panels for typical and non-typical floors are interchangeable; their inter-floor interfaces may differ.
• Prioritize the K panel detail on the benchmark floor and use the result as the reference for later cycles.

4. First-Floor Installation: Set the Lines Before Setting the Panels

The first rule of K panel installation is simple: establish accurate lines before erecting the panels. Before first-floor work begins, verify grid lines, wall edge lines, wall-thickness lines, starter-wall lines and the control level. The K panel position must agree with the structural drawings and provide the correct start for the formwork above. Many inter-floor offsets originate not in the panel itself, but in inaccurate first-floor setting out.

A typical sequence is to establish the starter-wall reference and setting-out lines, install and lightly secure the numbered K panels, check straightness, elevation and joints, and then lock the assembly together with adjacent wall, corner or opening panels. Installing the main wall panels first and forcing the K panel into the remaining gap commonly causes misaligned holes, clashing edge ribs and local twisting.

• Verify the grid, edge lines, wall thickness and starter-wall level before installing K panels.
• Install each K panel by number, orientation and segment sequence; never mix components.
• Remeasure short walls, corners, opening edges and stairwell locations on the first floor.
• Align the K panel after initial placement, then complete locking and reinforcement.
• If the starter wall is not straight, correct it first rather than forcing the K panel to create a false line.

5. How Should the K Panel Work with the Starter Wall and Wall Formwork?

A K panel does not work independently of the wall formwork. It must close together with the starter wall, wall panels, corner panels and opening details. The starter wall establishes the first physical reference, the K panel transfers that reference to the formwork above, and the wall panels close the complete wall system. If these three elements are treated separately, the inter-floor joint will be difficult to align.

The most frequently overlooked interfaces are between the K panel and internal or external corners, short-wall stop ends and the sides of door and window openings. K panels at midspan on a long wall are easier to adjust; junctions are where problems tend to develop. Unless the K panel is checked together with the corner or opening panels, the wall formwork above may not engage tightly and can develop local offsets or inter-floor grout leakage.

6. Why Do Offsets Develop at Joints Between Floors?

An inter-floor offset means that the starting reference for the wall formwork above was unstable or that the positioning relationship between floors was not closed. Typical causes include inaccurate K panel positioning, a crooked starter wall, failure to recheck vertical control lines before erecting the next-floor wall panels, residual mortar at the construction joint, and continued use of K panels with deformed ribs.

The cause should not be sought only on the upper floor. Many offsets originate on the first floor, while others arise when K panels are struck, moved or bent during handling and only become visible in the next cycle. The K panel is both an installation component and a managed reusable asset; it needs inspection and review on every floor.

• A displaced first-floor K panel is copied directly by the wall formwork above.
• A crooked starter wall sends the complete inter-floor joint off line.
• Damaged K panel ribs or holes prevent the wall formwork above from seating correctly.
• Residual mortar or laitance on the joint prevents firm initial seating.
• If edge lines and verticality are not rechecked before the upper-floor start, the deviation continues to grow.

7. How to Control Inter-Floor Joints: Follow Three Reference Lines

Inter-floor joint control depends on closing three references: the edge line, vertical control line and level line. The edge line aligns the wall from floor to floor, the vertical line keeps the wall face straight, and the level line keeps the joint even. The K panel carries all three references across the floor interface, so each must be remeasured before the wall formwork above is erected.

In practice, first clean residual mortar from the joint and K panel, then inspect panel flatness and hole condition. Next check the edge line against the starter wall, verify the vertical control line, and finally check joint elevation. This sequence first establishes whether the panels can fit, then whether they align correctly, and lastly whether the finished joint will look even.

8. How Should Connections and Reinforcement Prevent K Panel Movement?

Although a K panel occupies a small area at the wall base or inter-floor joint, its connections and reinforcement must not be reduced. It protects the starting reference for the formwork above and should never be treated as an auxiliary panel where hardware can be omitted.

Check that the K panel is securely locked, its edge ribs fit adjoining wall panels, its transitions to corners and openings are correct, and the wall walers and ties remain continuous at the starting level. If reinforcement is loose at the base, the lower part of the wall can still bulge, leak grout or develop an offset during casting even when the upper wall appears correctly aligned.

• Install all pins and wedges between K panels, wall panels and corner panels.
• Do not terminate walers or flat ties at the K panel starting zone.
• If edge ribs do not fit correctly, repair or replace the panel before locking the connectors.
• Carry out additional reinforcement checks at external walls, short walls and corners.
• Before casting, inspect the first-floor starter wall and K panel zone specifically for loose points.

9. What Requires Attention During Concrete Placement and Stripping?

Even a well-positioned K panel can lose alignment if the wall base is subjected to heavy concrete impact or repeated contact from the poker vibrator. Around the first-floor starter wall and K panel, control the discharge rate, avoid concentrated one-sided impact and compact thoroughly without over-vibration. The formwork watch should focus on starting details, short-wall stop ends, corners and opening sides.

During stripping, prevent damage that would compromise later reuse. Many projects establish accurate positioning on the first floor but see the joints deteriorate after two or three cycles because K panels are handled roughly, their ribs deform and their holes wear. As a reference component, the K panel should be maintained to a higher standard than ordinary infill panels.

• Place concrete evenly at the starting detail and avoid excessive local impact at the wall base.
• Do not allow the vibrator to strike K panels and connectors repeatedly.
• The formwork watch should focus on inter-floor joints, corners and short-wall ends.
• During stripping, protect K panels from bending, impact and damage around the holes.
• Before reuse, remove residual mortar and inspect flatness, edge ribs and hole condition.

10. Common Quality Problems and Cause Analysis

11. K Panel Installation and Inter-Floor Joint Checklist

• First-floor grid lines, wall edge lines, wall-thickness lines, starter-wall lines and level lines have been checked.
• K panel numbers, locations, orientation and segment-installation sequence have been confirmed.
• Interfaces between K panels, starter walls, wall panels, corner panels and opening edges have been checked.
• Connectors, walers and ties at the starting junction have been installed as specified.
• Before erecting the upper floor, residual mortar has been removed and edge, vertical and level lines remeasured.
• Short walls, corners, opening edges, cores and other key locations have received additional checks.
• A dedicated formwork watch covers first-floor starting details and inter-floor joints during casting.
• After stripping, K panel flatness, edge ribs, holes and deformation have been inspected.
• Joint-quality review records have been completed for the benchmark floor and first typical floor.

FAQ

Conclusion

The value of an aluminum formwork K panel is not its surface area, but its role as the reference for first-floor positioning and inter-floor construction joints. Accurate starter-wall setting out, correct K panel installation and disciplined line checks before the next-floor start give successive walls a stable basis for straightness, squareness and consistent appearance.

Main contractors, aluminum formwork subcontractors and procurement teams should treat the K panel as an inter-floor quality-control component, not an ordinary infill panel. When first-floor positioning, the starting junction, joint cleaning, connection and reinforcement, and reuse maintenance form a closed process, the aluminum formwork wall system can achieve fewer offsets, less grout leakage and less rework. CIEZN provides formwork engineering support, and project requirements can be submitted through its contact page.
